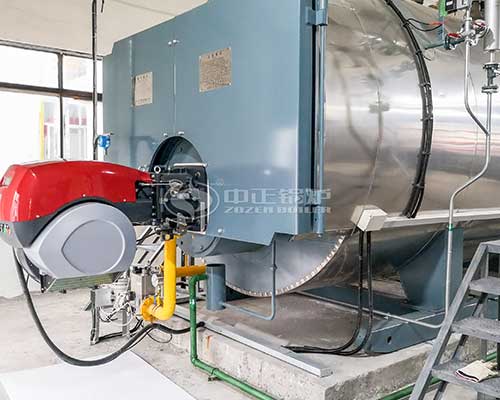

WNS wet back boiler is a kind of high quality boiler product.WNS series boiler adopts horizontal three-return wet back structure. This series boiler has large heat receiving area and good heat exchange effect. Today we will understand the principle of wet back boiler, and if you need to purchase boiler in the future, welcome to contact us, we can provide you with the most suitable boiler solution.
A wet-back boiler is one in which the smoke chamber of the boiler is moved to the inside of the boiler barrel of the corresponding boiler type. The tube plate, back plate and tube body of the flue chamber are surrounded by pot water (i.e. immersed in furnace water), hence the name “wet back”.
After the flue gas from this series of industrial boilers is transferred to the flue gas exchanger (first return pipe), the flue gas temperature is already low (generally around 450°C) when it reaches the front flue box. This makes the structure of the front flue box easy to fabricate, usually with steel construction and lined with insulation material. Boilers with “wet back” construction can accommodate high temperatures and are well sealed. It is also much smaller than the “dry-back” type flue box. Therefore, it can avoid the disadvantages of “dry-back” structure, prolong the normal operation cycle of the boiler and reduce the maintenance cost, so it is widely used.
WNS wet back boiler should be operated to avoid boiler water shortage. The flame of this series boiler burns in a large combustion chamber with micro positive pressure and full extension, low combustion heat load, high combustion thermal efficiency, effective reduction of exhaust smoke temperature, energy saving and consumption reduction, and economic use. The structure of corrugated furnace tube and threaded tube increases the heat absorption strength of the boiler and meets the need for thermal expansion of the heat exchange surface, which is scientific, reasonable and durable.
WNS wet back boiler has large space, more steam storage and strong ability to adapt to load. A reasonable built-in steam separator device is also designed to meet the higher requirements of users for steam quality. The boiler body has a manhole, which is easy to clean the furnace. Easy to repair and maintain. Organic combination with electromechanical appearance, ingenious and novel, compact structure, small area, easy transportation and installation.
Zozen Boilers is committed to producing high quality boiler products. Over the years, we have established friendly relationships with many customers and our boiler products are sold to many countries and regions around the world, including Southeast Asia, Africa, America and the Middle East. We are a high quality boiler manufacturer and can provide custom boiler service, please feel free to inquire about purchasing.
