Product thermal capacity: 1 – 20 t/h
Working pressure: 0.7-2 MPa
Available fuel: Natural gas, coke oven gas, biogas, diesel, heavy oil, light oil, crude oil, etc.
Available industries: Heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, hospital etc.
Email: zhulin@zozen.com

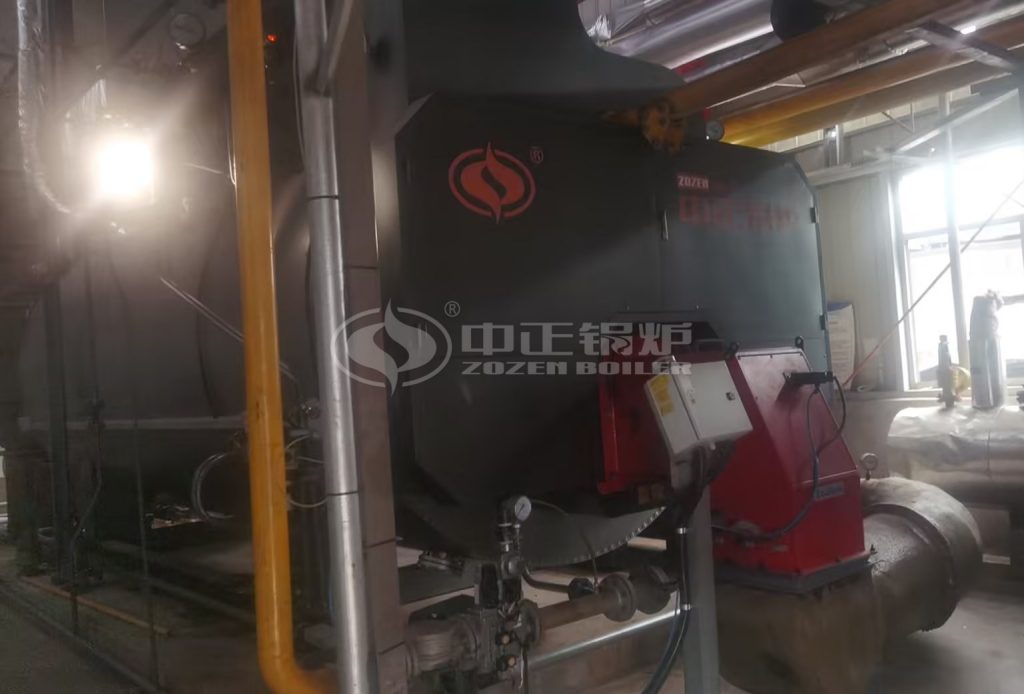

WNS Series New Condensing Gas Boiler Introduction
The WNS series new condensing gas boiler adopts advanced condensing technology, significantly boosting thermal efficiency to over 98% by recovering latent heat from flue gas, thus substantially reducing energy consumption and emissions. The main body of the WNS series new condensing gas boiler is made of high-quality stainless steel, ensuring excellent corrosion resistance and a long lifespan. Its compact design not only saves space but also facilitates installation and maintenance. Equipped with an intelligent control system, users can easily adjust temperatures and monitor in real-time through a touchscreen interface, ensuring safe and stable operation. Furthermore, the WNS series new condensing gas boiler complies with stringent environmental standards, with NOx emissions below 30mg/m³, greatly minimizing its impact on the environment.
WNS Series New Condensing Gas Boiler Advantage
High Thermal Efficiency: Utilizing condensing technology, the thermal efficiency can reach over 98%, significantly reducing energy consumption and enhancing economic benefits.
Excellent Environmental Performance: Low-NOx combustion technology reduces nitrogen oxides and other pollutant emissions, complying with environmental regulations and supporting sustainable development.
Intelligent Control System: Equipped with an advanced automated control system, it supports remote monitoring, optimizes operational status, and enhances safety and reliability.
Reliable Manufacturing Quality: Made from high-quality materials and advanced processes, ensuring long-term stable operation of the boiler, reducing failure rates, and extending service life.
WNS Series New Condensing Gas Boiler Specification
| Model | Rated steam capacity (t/h) | Rated working pressure (MPa) | Rated steam temperature (℃) | Feed water temperature (℃) | Maximum transport weight (t) | Maximum transport dimension (m) |
| WNS1-0.7-Q(Y) | 1 | 0.7 | 170 | 20 | 4.5 | 3.25×1.80×2.00 |
| WNS1-1.0-Q(Y) | 1 | 1.0 | 184 | 20 | 4.5 | 3.25×1.80×2.00 |
| WNS1.5-1.0-Q(Y) | 1.5 | 1.0 | 184 | 20 | 7.0 | 3.65×2.05×2.45 |
| WNS1.5-1.25-Q(Y) | 1.5 | 1.25 | 194 | 20 | 7.0 | 3.65×2.05×2.45 |
| WNS2-1.0-Q(Y) | 2 | 1.0 | 184 | 20 | 9.0 | 4.60×2.20×2.60 |
| WNS2-1.25-Q(Y) | 2 | 1.25 | 194 | 20 | 9.0 | 4.60×2.20×2.60 |
| WNS3-1.0-Q(Y) | 3 | 1.0 | 184 | 20 | 11.5 | 5.35×2.40×2.80 |
| WNS3-1.25-Q(Y) | 3 | 1.25 | 194 | 20 | 11.5 | 5.35×2.40×2.80 |
| WNS4-1.25-Q(Y) | 4 | 1.25 | 194 | 20 | 15.0 | 5.00×2.60×2.95 |
| WNS4-1.6-Q(Y) | 4 | 1.6 | 204 | 20 | 15.0 | 5.00×2.60×2.95 |
| WNS5-1.25-Q(Y) | 5 | 1.25 | 194 | 20 | 18.0 | 5.55×2.658×3.20 |
| WNS5-1.6-Q(Y) | 5 | 1.6 | 204 | 20 | 18.0 | 5.55×2.658×3.20 |
| WNS6-1.25-Q(Y) | 6 | 1.25 | 194 | 20 | 19.5 | 5.93×2.80×3.20 |
| WNS6-1.6-Q(Y) | 6 | 1.6 | 204 | 20 | 19.5 | 5.93×2.80×3.20 |
| WNS8-1.25-Q(Y) | 8 | 1.25 | 194 | 20 | 25.0 | 7.00×2.80×3.25 |
| WNS8-1.6-Q(Y) | 8 | 1.6 | 204 | 20 | 25.0 | 7.00×2.80×3.25 |
| WNS10-1.25-Q(Y) | 10 | 1.25 | 194 | 104 | 27.5 | 7.65×2.80×3.25 |
| WNS10-1.6-Q(Y) | 10 | 1.6 | 204 | 104 | 27.5 | 7.65×2.80×3.25 |
| WNS15-1.25-Q(Y) | 15 | 1.25 | 194 | 104 | 40.0 | 7.95×3.50×3.75 |
| WNS15-1.6-Q(Y) | 15 | 1.6 | 204 | 104 | 40.0 | 7.95×3.50×3.75 |
| WNS20-1.25-Q(Y) | 20 | 1.25 | 194 | 104 | 52.0 | 8.55×3.90×4.15 |
| WNS20-1.6-Q(Y) | 20 | 1.6 | 204 | 104 | 52.0 | 8.55×3.90×4.15 |
