Product thermal capacity: 1 – 20 t/h
Working pressure: 0.7-2 MPa
Available fuel: Natural gas, coke oven gas, biogas, diesel, heavy oil, light oil, crude oil, etc.
Available industries: Heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, hospital etc.
Email: zhulin@zozen.com

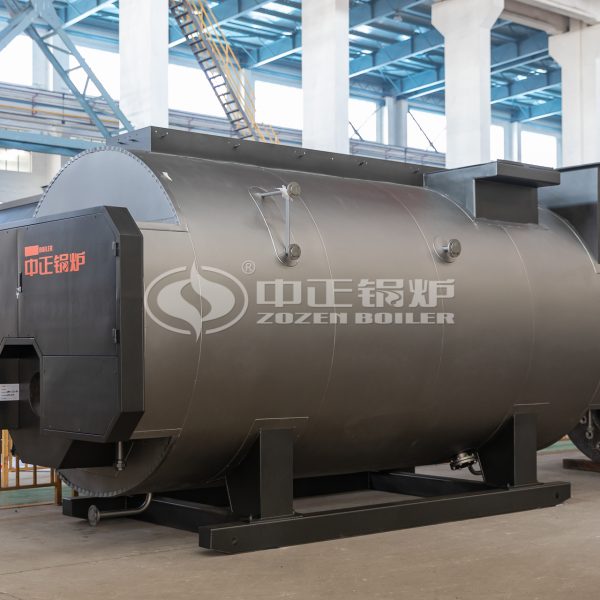

WNS Series 6 Ton Boiler Introduction
The WNS series 6 ton boiler adopts a horizontal fire tube structure, integrating advanced technology for excellent thermal efficiency and stable operational performance. Equipped with an automated control system, the WNS series 6 ton boiler enables intelligent operation and features a high-efficiency burner to ensure thorough fuel combustion, significantly reducing energy consumption and emissions. Additionally, the WNS series 6 ton boiler boasts exceptional safety and reliability. Constructed with high-quality steel materials that are resistant to high temperatures and corrosion, it extends the equipment’s lifespan. Multiple safety protection devices effectively safeguard the stable operation of the WNS series 6 ton boiler in high-pressure environments, ensuring user safety.
The ZOZEN WNS series 6 ton boiler not only meets stringent environmental standards but also holds various international certifications, making it an ideal steam solution for a wide range of industrial applications. Whether enhancing production efficiency or conserving energy, the WNS series 6 ton boiler provides robust support for customers.
WNS Series 6 Ton Boiler Advantage
High Efficiency and Energy Savings: The WNS series 6 ton boiler utilizes optimized fire tube design and high-efficiency burners to achieve higher thermal efficiency, significantly reducing fuel consumption and operating costs.
Intelligent Control: Equipped with an advanced automated control system, the WNS series 6 ton boiler can monitor boiler operation in real-time, offering simple operation, remote monitoring, and automatic alarm functions to ensure convenience and safety.
Environmentally Friendly with Low Emissions: Designed to meet strict environmental standards, the WNS series 6 ton boiler ensures thorough combustion and low emissions, effectively reducing pollutant discharge and helping businesses achieve green production.
Convenient Operation and Maintenance: With a horizontal structure that occupies minimal space, the WNS series boilers are easy to install and maintain, significantly reducing installation and maintenance costs, making them suitable for industrial users with limited site space.
Safety and Reliability: Constructed with high-quality steel materials resistant to high temperatures and pressures, equipped with multiple safety protection devices such as pressure controllers and water level detectors, ensuring the long-term stable operation of the boiler and user safety.
WNS Series Gas/Oil Boiler Specification
| Model | Rated steam capacity (t/h) | Rated working pressure (MPa) | Rated steam temperature (℃) | Feed water temperature (℃) | Maximum transport weight (t) | Maximum transport dimension (m) |
| WNS1-0.7-Q(Y) | 1 | 0.7 | 170 | 20 | 4.5 | 3.25×1.80×2.00 |
| WNS1-1.0-Q(Y) | 1 | 1.0 | 184 | 20 | 4.5 | 3.25×1.80×2.00 |
| WNS1.5-1.0-Q(Y) | 1.5 | 1.0 | 184 | 20 | 7.0 | 3.65×2.05×2.45 |
| WNS1.5-1.25-Q(Y) | 1.5 | 1.25 | 194 | 20 | 7.0 | 3.65×2.05×2.45 |
| WNS2-1.0-Q(Y) | 2 | 1.0 | 184 | 20 | 9.0 | 4.60×2.20×2.60 |
| WNS2-1.25-Q(Y) | 2 | 1.25 | 194 | 20 | 9.0 | 4.60×2.20×2.60 |
| WNS3-1.0-Q(Y) | 3 | 1.0 | 184 | 20 | 11.5 | 5.35×2.40×2.80 |
| WNS3-1.25-Q(Y) | 3 | 1.25 | 194 | 20 | 11.5 | 5.35×2.40×2.80 |
| WNS4-1.25-Q(Y) | 4 | 1.25 | 194 | 20 | 15.0 | 5.00×2.60×2.95 |
| WNS4-1.6-Q(Y) | 4 | 1.6 | 204 | 20 | 15.0 | 5.00×2.60×2.95 |
| WNS5-1.25-Q(Y) | 5 | 1.25 | 194 | 20 | 18.0 | 5.55×2.658×3.20 |
| WNS5-1.6-Q(Y) | 5 | 1.6 | 204 | 20 | 18.0 | 5.55×2.658×3.20 |
| WNS6-1.25-Q(Y) | 6 | 1.25 | 194 | 20 | 19.5 | 5.93×2.80×3.20 |
| WNS6-1.6-Q(Y) | 6 | 1.6 | 204 | 20 | 19.5 | 5.93×2.80×3.20 |
| WNS8-1.25-Q(Y) | 8 | 1.25 | 194 | 20 | 25.0 | 7.00×2.80×3.25 |
| WNS8-1.6-Q(Y) | 8 | 1.6 | 204 | 20 | 25.0 | 7.00×2.80×3.25 |
| WNS10-1.25-Q(Y) | 10 | 1.25 | 194 | 104 | 27.5 | 7.65×2.80×3.25 |
| WNS10-1.6-Q(Y) | 10 | 1.6 | 204 | 104 | 27.5 | 7.65×2.80×3.25 |
| WNS15-1.25-Q(Y) | 15 | 1.25 | 194 | 104 | 40.0 | 7.95×3.50×3.75 |
| WNS15-1.6-Q(Y) | 15 | 1.6 | 204 | 104 | 40.0 | 7.95×3.50×3.75 |
| WNS20-1.25-Q(Y) | 20 | 1.25 | 194 | 104 | 52.0 | 8.55×3.90×4.15 |
| WNS20-1.6-Q(Y) | 20 | 1.6 | 204 | 104 | 52.0 | 8.55×3.90×4.15 |
