Product thermal capacity: 1 – 20 t/h
Working pressure: 0.7-2 MPa
Available fuel: Natural gas, coke oven gas, biogas, diesel, heavy oil, light oil, crude oil, etc.
Available industries: Heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, hospital etc.
Email: zhulin@zozen.com

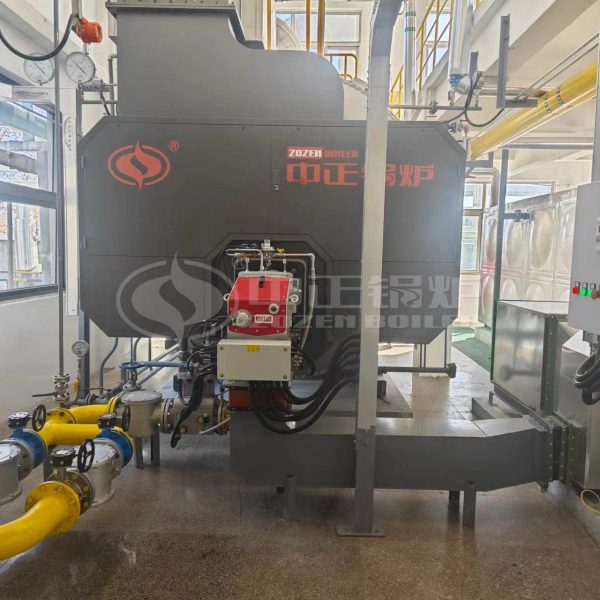

WNS Series 5 Ton Steam Boiler Introduction
The WNS series 5 ton steam boiler is a high-efficiency, energy-saving, and easy-to-operate horizontal internal combustion wet-back steam boiler. It is widely used in various industries such as food processing, chemical production, textiles, rubber, and paper manufacturing. This boiler runs on clean fuels such as natural gas, diesel, and heavy oil, and is equipped with an advanced low-NOx burner to ensure complete combustion and environmentally friendly emissions, fully complying with ultra-low nitrogen emission standards.
The WNS series 5 ton steam boiler features a fully automatic control system that enables unattended operation. Real-time monitoring of the boiler’s operating status enhances both safety and stability. Its three-pass wet-back structure significantly boosts thermal efficiency—reaching over 98%—thereby greatly reducing operating costs. The boiler body is made of high-quality steel with a compact overall structure, occupying minimal space and allowing for easy installation.
In addition, the WNS series 5 ton steam boiler is equipped with comprehensive safety protections, including multiple interlock mechanisms for over-temperature, overpressure, and water shortage, providing reliable steam support for enterprises. As one of ZOZEN Boiler’s flagship products, the WNS series 5 ton steam boiler has earned wide recognition from both domestic and international customers for its outstanding performance and excellent service, making it an ideal choice for small and medium-sized enterprises with steam needs.
WNS Series 5 Ton Steam Boiler Advantage
High Efficiency and Energy Saving: The WNS series 5 ton steam boiler adopts a three-pass wet-back structure combined with an advanced combustion system. It achieves a thermal efficiency of over 98%, significantly reducing fuel consumption and operational costs.
Environmentally Friendly Low-NOx Emissions: Equipped with internationally branded low-NOx burners, the WNS series 5 ton steam boiler ensures complete combustion with NOx emissions lower than 30mg/Nm³, meeting stringent environmental regulations.
Intelligent Control System: With a fully automated user interface, the WNS series 5 ton steam boiler supports remote monitoring and fault alarms, offering convenient operation while enhancing the safety and stability of boiler operation.
Compact Structure and Easy Installation: The WNS series 5 ton steam boiler is delivered as a complete unit with a small footprint and a short on-site installation period, making it especially suitable for users with limited space or tight project timelines.
WNS Series 5 Ton Steam Boiler Specification
| Model | Rated steam capacity (t/h) | Rated working pressure (MPa) | Rated steam temperature (℃) | Feed water temperature (℃) | Maximum transport weight (t) | Maximum transport dimension (m) |
| WNS1-0.7-Q(Y) | 1 | 0.7 | 170 | 20 | 4.5 | 3.25×1.80×2.00 |
| WNS1-1.0-Q(Y) | 1 | 1.0 | 184 | 20 | 4.5 | 3.25×1.80×2.00 |
| WNS1.5-1.0-Q(Y) | 1.5 | 1.0 | 184 | 20 | 7.0 | 3.65×2.05×2.45 |
| WNS1.5-1.25-Q(Y) | 1.5 | 1.25 | 194 | 20 | 7.0 | 3.65×2.05×2.45 |
| WNS2-1.0-Q(Y) | 2 | 1.0 | 184 | 20 | 9.0 | 4.60×2.20×2.60 |
| WNS2-1.25-Q(Y) | 2 | 1.25 | 194 | 20 | 9.0 | 4.60×2.20×2.60 |
| WNS3-1.0-Q(Y) | 3 | 1.0 | 184 | 20 | 11.5 | 5.35×2.40×2.80 |
| WNS3-1.25-Q(Y) | 3 | 1.25 | 194 | 20 | 11.5 | 5.35×2.40×2.80 |
| WNS4-1.25-Q(Y) | 4 | 1.25 | 194 | 20 | 15.0 | 5.00×2.60×2.95 |
| WNS4-1.6-Q(Y) | 4 | 1.6 | 204 | 20 | 15.0 | 5.00×2.60×2.95 |
| WNS5-1.25-Q(Y) | 5 | 1.25 | 194 | 20 | 18.0 | 5.55×2.658×3.20 |
| WNS5-1.6-Q(Y) | 5 | 1.6 | 204 | 20 | 18.0 | 5.55×2.658×3.20 |
| WNS6-1.25-Q(Y) | 6 | 1.25 | 194 | 20 | 19.5 | 5.93×2.80×3.20 |
| WNS6-1.6-Q(Y) | 6 | 1.6 | 204 | 20 | 19.5 | 5.93×2.80×3.20 |
| WNS8-1.25-Q(Y) | 8 | 1.25 | 194 | 20 | 25.0 | 7.00×2.80×3.25 |
| WNS8-1.6-Q(Y) | 8 | 1.6 | 204 | 20 | 25.0 | 7.00×2.80×3.25 |
| WNS10-1.25-Q(Y) | 10 | 1.25 | 194 | 104 | 27.5 | 7.65×2.80×3.25 |
| WNS10-1.6-Q(Y) | 10 | 1.6 | 204 | 104 | 27.5 | 7.65×2.80×3.25 |
| WNS15-1.25-Q(Y) | 15 | 1.25 | 194 | 104 | 40.0 | 7.95×3.50×3.75 |
| WNS15-1.6-Q(Y) | 15 | 1.6 | 204 | 104 | 40.0 | 7.95×3.50×3.75 |
| WNS20-1.25-Q(Y) | 20 | 1.25 | 194 | 104 | 52.0 | 8.55×3.90×4.15 |
| WNS20-1.6-Q(Y) | 20 | 1.6 | 204 | 104 | 52.0 | 8.55×3.90×4.15 |
