Product thermal capacity: 1 – 20 t/h
Working pressure: 0.7-2 MPa
Available fuel: Natural gas, coke oven gas, biogas, diesel, heavy oil, light oil, crude oil, etc.
Available industries: Heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, hospital etc.
Email: zhulin@zozen.com

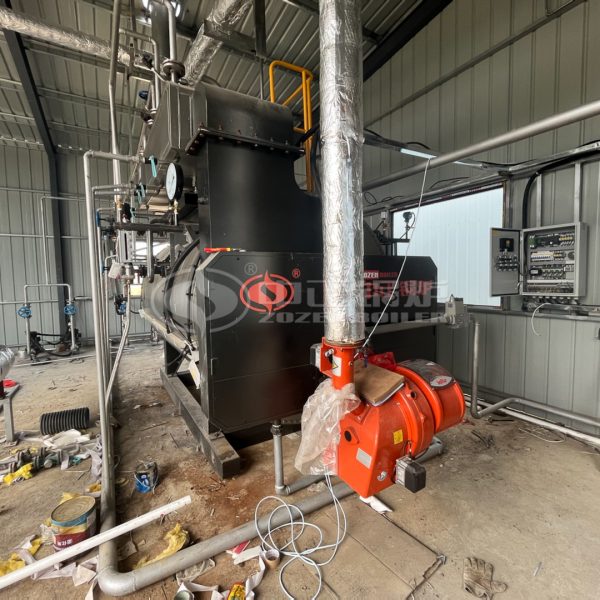

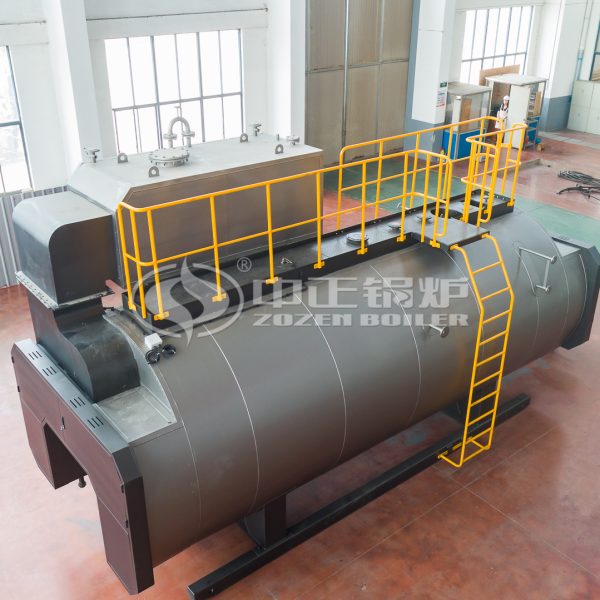

WNS Series 4 Tph Boiler Introduction
The WNS series 4 tph boiler is a three-pass wetback fire tube boiler known for its efficiency, reliability, and compact design. This series of boilers supports dual-fuel operation, allowing for the use of natural gas, liquefied petroleum gas, and diesel as fuel sources. Such flexibility enables the 4 tph boiler to adapt seamlessly to varying fuel supply conditions, ensuring stable steam output to meet specific user requirements.
The 4 tph boiler features a compact structure, occupying a minimal footprint, making it ideal for installation in industrial facilities with space constraints. Its thoughtful design also simplifies routine maintenance and cleaning, significantly reducing downtime and enhancing operational efficiency.
WNS Series 4 Tph Boiler Advantage
Efficient Energy Utilization: The WNS series 4 tph boiler integrates advanced combustion systems and high-efficiency heat recovery technology to maximize energy utilization. By effectively converting the thermal energy released during fuel combustion, this 4 tph boiler minimizes energy waste, thereby helping enterprises lower their overall energy costs.
Safe and Reliable Operation: Equipped with sophisticated control systems and safety protection devices, the WNS series 4 tph boiler ensures safe and stable operation. Key features include overheating protection, automatic combustion regulation, and pressure control. The system continuously monitors and automatically adjusts critical operational parameters, effectively preventing risks such as overheating or overpressure.
Superior Safety Features: In addition to automatic control, the WNS series 4 tph boiler is fitted with multiple safety systems, such as overpressure protection, flameout protection, and temperature monitoring. These comprehensive safeguards ensure long-term operational reliability and peace of mind for users.
Environmentally Friendly and Energy Efficient: The WNS series 4 tph boiler adopts cutting-edge combustion technology along with smoke recirculation systems. This significantly reduces exhaust emissions and minimizes environmental pollution, helping businesses comply with stringent environmental regulations. At the same time, its outstanding fuel efficiency reduces operational costs, making it an economical and eco-friendly choice.
WNS Series 4 Tph Boiler Specification
| Model | Rated steam capacity (t/h) | Rated working pressure (MPa) | Rated steam temperature (℃) | Feed water temperature (℃) | Maximum transport weight (t) | Maximum transport dimension (m) |
| WNS1-0.7-Q(Y) | 1 | 0.7 | 170 | 20 | 4.5 | 3.25×1.80×2.00 |
| WNS1-1.0-Q(Y) | 1 | 1.0 | 184 | 20 | 4.5 | 3.25×1.80×2.00 |
| WNS1.5-1.0-Q(Y) | 1.5 | 1.0 | 184 | 20 | 7.0 | 3.65×2.05×2.45 |
| WNS1.5-1.25-Q(Y) | 1.5 | 1.25 | 194 | 20 | 7.0 | 3.65×2.05×2.45 |
| WNS2-1.0-Q(Y) | 2 | 1.0 | 184 | 20 | 9.0 | 4.60×2.20×2.60 |
| WNS2-1.25-Q(Y) | 2 | 1.25 | 194 | 20 | 9.0 | 4.60×2.20×2.60 |
| WNS3-1.0-Q(Y) | 3 | 1.0 | 184 | 20 | 11.5 | 5.35×2.40×2.80 |
| WNS3-1.25-Q(Y) | 3 | 1.25 | 194 | 20 | 11.5 | 5.35×2.40×2.80 |
| WNS4-1.25-Q(Y) | 4 | 1.25 | 194 | 20 | 15.0 | 5.00×2.60×2.95 |
| WNS4-1.6-Q(Y) | 4 | 1.6 | 204 | 20 | 15.0 | 5.00×2.60×2.95 |
| WNS5-1.25-Q(Y) | 5 | 1.25 | 194 | 20 | 18.0 | 5.55×2.658×3.20 |
| WNS5-1.6-Q(Y) | 5 | 1.6 | 204 | 20 | 18.0 | 5.55×2.658×3.20 |
| WNS6-1.25-Q(Y) | 6 | 1.25 | 194 | 20 | 19.5 | 5.93×2.80×3.20 |
| WNS6-1.6-Q(Y) | 6 | 1.6 | 204 | 20 | 19.5 | 5.93×2.80×3.20 |
| WNS8-1.25-Q(Y) | 8 | 1.25 | 194 | 20 | 25.0 | 7.00×2.80×3.25 |
| WNS8-1.6-Q(Y) | 8 | 1.6 | 204 | 20 | 25.0 | 7.00×2.80×3.25 |
| WNS10-1.25-Q(Y) | 10 | 1.25 | 194 | 104 | 27.5 | 7.65×2.80×3.25 |
| WNS10-1.6-Q(Y) | 10 | 1.6 | 204 | 104 | 27.5 | 7.65×2.80×3.25 |
| WNS15-1.25-Q(Y) | 15 | 1.25 | 194 | 104 | 40.0 | 7.95×3.50×3.75 |
| WNS15-1.6-Q(Y) | 15 | 1.6 | 204 | 104 | 40.0 | 7.95×3.50×3.75 |
| WNS20-1.25-Q(Y) | 20 | 1.25 | 194 | 104 | 52.0 | 8.55×3.90×4.15 |
| WNS20-1.6-Q(Y) | 20 | 1.6 | 204 | 104 | 52.0 | 8.55×3.90×4.15 |
