Product thermal capacity: 4 t/h
Working pressure: 0.7-2 MPa
Available fuel: Natural gas, coke oven gas, biogas, diesel, heavy oil, light oil, crude oil, etc.
Available industries: Heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, hospital etc.
Email: zhulin@zozen.com

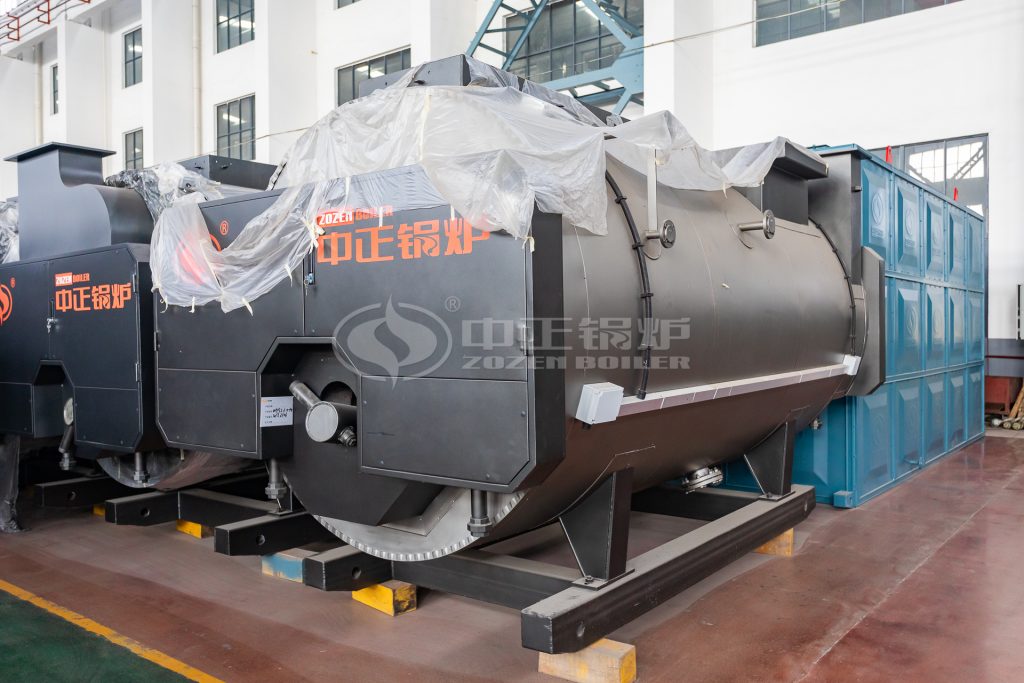

Horizontal Dual Fuel 4 Ton Steam Boiler Introduction
The WNS series horizontal dual fuel 4 ton steam boiler is a three-pass wetback fire tube boiler. This series of boilers supports dual-fuel supply, allowing the use of various fuels such as natural gas, liquefied petroleum gas, and diesel for combustion. This flexibility enables the boiler to adapt to different fuel supply conditions, provide stable steam output, and meet specific user requirements. The horizontal dual fuel 4 ton steam boiler is designed with a compact layout, occupying a smaller footprint, making it suitable for installation in limited industrial spaces. Its design takes into consideration ease of maintenance and cleaning, enabling operators to conveniently perform routine maintenance and cleaning tasks, thereby reducing downtime.
Horizontal Dual Fuel 4 Ton Steam Boiler Advantage
Efficient Energy Utilization: The WNS series horizontal dual-fuel 4-ton steam boiler utilizes advanced combustion systems and heat recovery technology to maximize energy utilization efficiency. It effectively converts the thermal energy released from fuel combustion, reducing energy waste and lowering energy costs for businesses.
Safe and Reliable Operation: The WNS series horizontal dual-fuel 4-ton steam boiler is equipped with advanced control systems and safety devices to ensure safe and stable operation. It includes functions such as overheating protection, automatic combustion regulation, and pressure protection. The boiler can automatically monitor and adjust operational parameters to prevent dangerous situations such as overheating and overpressure.
Safety and Reliability: The WNS series boilers are equipped with advanced safety protection devices, including overheating protection, overpressure protection, and automatic combustion control systems, ensuring safe operation and stability.
Environmentally Friendly and Energy Efficient: This series of boilers adopts advanced combustion technology and smoke recirculation devices, effectively reducing exhaust emissions and environmental pollution, complying with environmental requirements. Additionally, the efficient energy utilization also helps to reduce energy consumption and costs for businesses.
Horizontal Dual Fuel Steam Boiler Specification
| Model | Rated steam capacity (t/h) | Rated working pressure (MPa) | Rated steam temperature (℃) | Feed water temperature (℃) | Maximum transport weight (t) | Maximum transport dimension (m) |
| WNS1-0.7-Q(Y) | 1 | 0.7 | 170 | 20 | 4.5 | 3.25×1.80×2.00 |
| WNS1-1.0-Q(Y) | 1 | 1 | 184 | 20 | 4.5 | 3.25×1.80×2.00 |
| WNS1.5-1.0-Q(Y) | 1.5 | 1 | 184 | 20 | 7 | 3.65×2.05×2.45 |
| WNS1.5-1.25-Q(Y) | 1.5 | 1.25 | 194 | 20 | 7 | 3.65×2.05×2.45 |
| WNS2-1.0-Q(Y) | 2 | 1 | 184 | 20 | 9 | 4.60×2.20×2.60 |
| WNS2-1.25-Q(Y) | 2 | 1.25 | 194 | 20 | 9 | 4.60×2.20×2.60 |
| WNS3-1.0-Q(Y) | 3 | 1 | 184 | 20 | 11.5 | 5.35×2.40×2.80 |
| WNS3-1.25-Q(Y) | 3 | 1.25 | 194 | 20 | 11.5 | 5.35×2.40×2.80 |
| WNS4-1.25-Q(Y) | 4 | 1.25 | 194 | 20 | 15 | 5.00×2.60×2.95 |
| WNS4-1.6-Q(Y) | 4 | 1.6 | 204 | 20 | 15 | 5.00×2.60×2.95 |
| WNS5-1.25-Q(Y) | 5 | 1.25 | 194 | 20 | 18 | 5.55×2.658×3.20 |
| WNS5-1.6-Q(Y) | 5 | 1.6 | 204 | 20 | 18 | 5.55×2.658×3.20 |
| WNS6-1.25-Q(Y) | 6 | 1.25 | 194 | 20 | 19.5 | 5.93×2.80×3.20 |
| WNS6-1.6-Q(Y) | 6 | 1.6 | 204 | 20 | 19.5 | 5.93×2.80×3.20 |
| WNS8-1.25-Q(Y) | 8 | 1.25 | 194 | 20 | 25 | 7.00×2.80×3.25 |
| WNS8-1.6-Q(Y) | 8 | 1.6 | 204 | 20 | 25 | 7.00×2.80×3.25 |
| WNS10-1.25-Q(Y) | 10 | 1.25 | 194 | 104 | 27.5 | 7.65×2.80×3.25 |
| WNS10-1.6-Q(Y) | 10 | 1.6 | 204 | 104 | 27.5 | 7.65×2.80×3.25 |
| WNS15-1.25-Q(Y) | 15 | 1.25 | 194 | 104 | 40 | 7.95×3.50×3.75 |
| WNS15-1.6-Q(Y) | 15 | 1.6 | 204 | 104 | 40 | 7.95×3.50×3.75 |
| WNS20-1.25-Q(Y) | 20 | 1.25 | 194 | 104 | 52 | 8.55×3.90×4.15 |
| WNS20-1.6-Q(Y) | 20 | 1.6 | 204 | 104 | 52 | 8.55×3.90×4.15 |
